Colonoscopy Training Model

Features of Colonoscopy Training Model

• Composition: Fixed model part: colon, base, and upper cover.

• Replaceable model part: simulated polyp.

• Procedure: Colonoscopy, upper gastrointestinal biopsy, and polypectomy.

• Simulated pathology/condition: for tumors

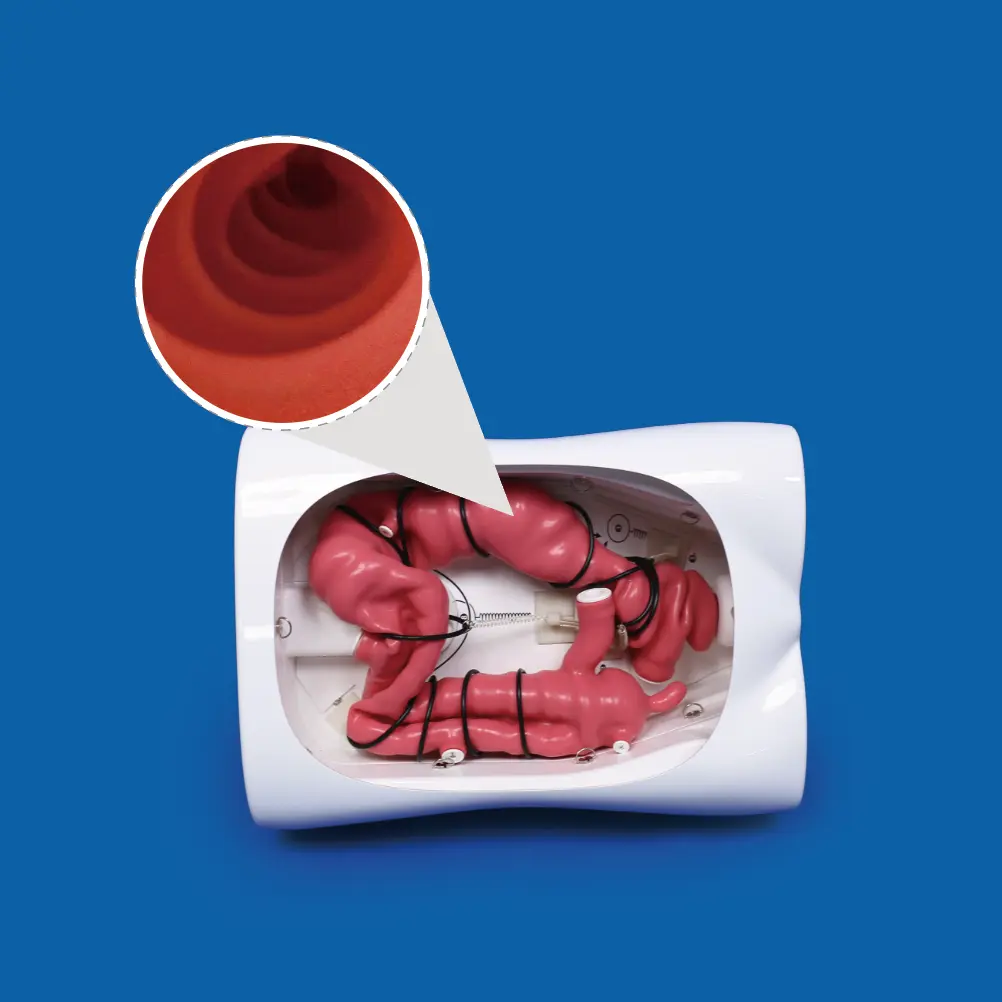

• Other characteristics: Based on the CT data of the adult lower digestive tract, this medical simulation training equipment is designed and made of soft silica gel. The models of ascending colon, transverse colon, and descending colon are highly close to the relevant anatomical structures of the human body, and the operation feel is realistic.

Specification of Colonoscopy Training Model

Colonoscope training model	MODEL: PLXH1001
Main Material of the Endo Sim	Highly soft silica gel, hardness:18A~30A
Product Size	Model length: 68 cm (26.8in)
	Model width: 23 cm (9.1 in)
	Model height: 25 cm (9.8 in)
Lead Time	15 days
Port	Shanghai, China

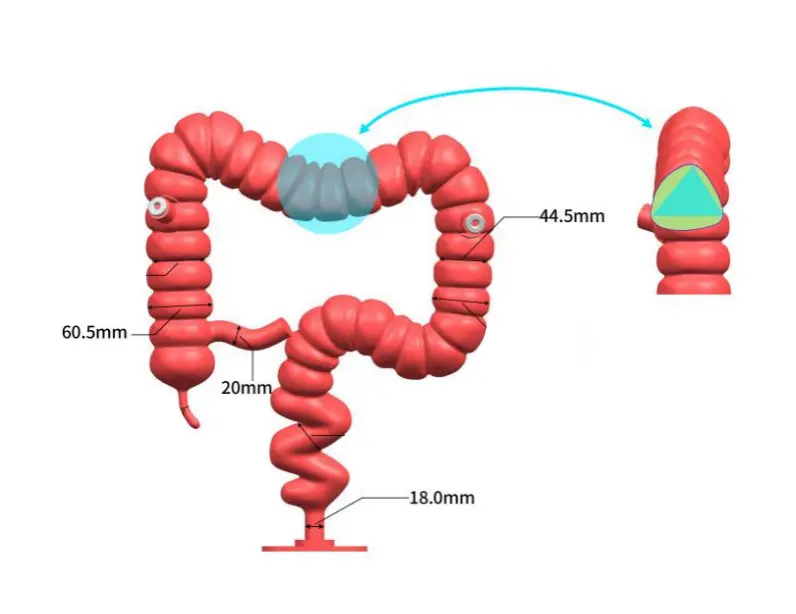

Drawing of Colonoscopy Training Model

Overview of the Compatibility of the Colonoscopy Training Models

1. Manufactured by Preclinic, one of the professional medical simulator manufacturers in the world, the colonoscopy model is compatible with most brands and models of colonoscopes on the market, including well-known brands such as Olympus, Pentax and Fujifilm. This ensures that users can use existing equipment for training without purchasing new equipment.

2. This colonoscopy simulator is compatible with a variety of endoscopic auxiliary tools, such as biopsy forceps, snares and injection needles, and supports a variety of clinical operation simulations. Whether it is polyp removal, biopsy sampling or drug injection, realistic simulation training can be performed on this rectum model.

3. This large intestine 3D model also supports the replacement of multiple lesion modules, which can simulate different clinical lesions, such as polyps, tumors and inflammation, and provide a variety of training scenarios.

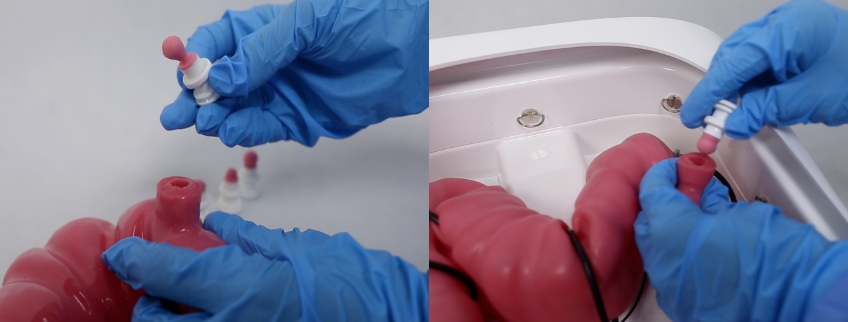

Colonoscopy Simulator Comes with Two Interchangeable Polyp Modules

FAQs on Preclinic Colonoscopy Simulator

Q1: Where is the polyp replacement point?

A replaceable polyp module is set up in the ascending colon and descending colon to facilitate the operator to conduct corresponding surgical operation training.

Q2: What anatomical structures does the colonoscopy training model include?

The colon model has complete anatomical structures, including the anus, rectum, sigmoid colon, descending colon, transverse colon, ascending colon, cecum, appendix and openings of the small intestine.

Q3: What are the components of the colonoscopy model?

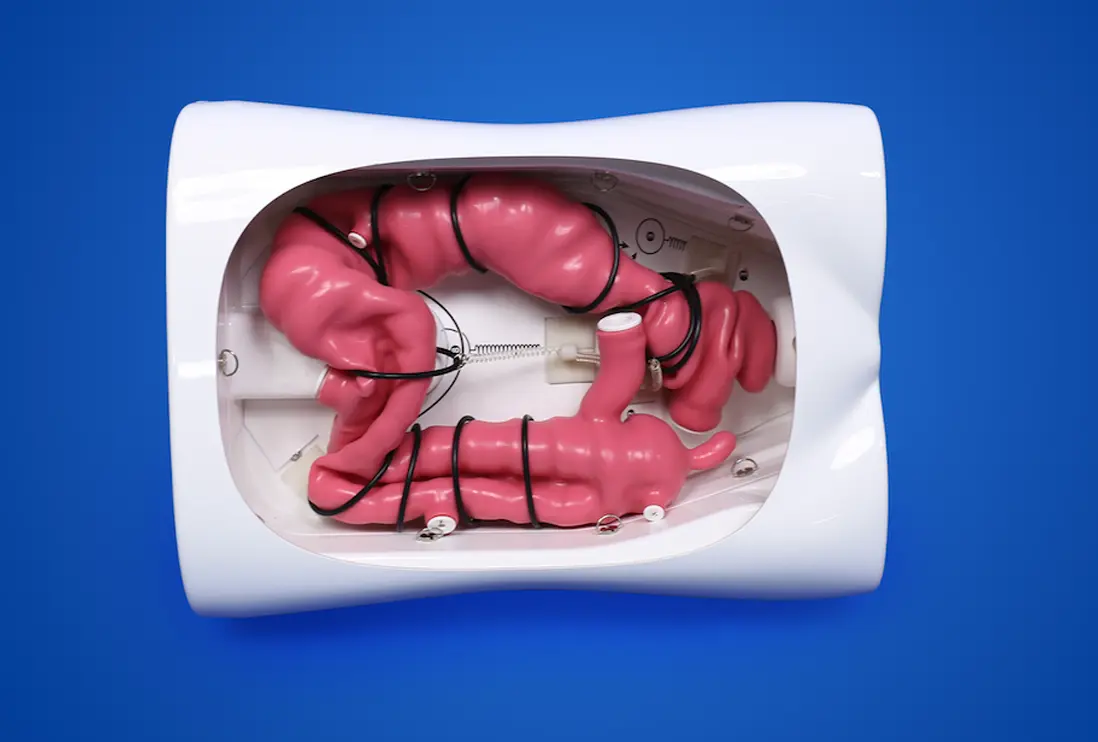

The colonoscopy model consists of a silicone colon model, a white ABS shell, a colon fixation collar, two polyp replacement points, an anal inflatable balloon, and a high-elastic fabric that simulates the greater omentum.
